APACHE-F

€799,00 EUR
Tax included
Sale
The APACHE-F is our dedicated race foil sail, created to offer high performance, speed and stability, with a 7 carbon/composite batten and 4 camber set-up ... combining the benefits of a high aspect design with outstanding maneuverability and lightness. HIGH PERFORMANCE FOIL ACTION Achieving blistering speed, acceleration in combination with...
Sail Size
  • 5.2
  • 6.2
  • 7.2
  • 8.5

In stock

Start-EComposer-custom-liquid-pickup

Pickup available at Warehouse NL.

Usually ready in 24 hours

APACHE-F

Sail Size: 5.2

  • Warehouse NL

    Pickup available, usually ready in 24 hours

    Amphoraweg 10
    2332 EE Leiden
    Netherlands

    0651307543

End-EComposer-custom-liquid-pickup
Successfully message

APACHE-F

€799,00 EUR

Ask a question

Name should not be empty
Your email address is not valid.
Your phone number is not valid.
Message content should not be empty.
  • Fixed fee shipping on all products

  • 14-days return policy

  • Ordered today, shipped next business day

share :

HIGH PERFORMANCE FOIL ACTION

Achieving blistering speed, acceleration in combination with lightweight ergonomic features were the main design objectives for APACHE-F, maximising performance and minimising weight. We remain true to our mission statement to stay leaders in innovation and produce only high quality products with a high performance level. As all new ranges, this dedicated race foils sail range has also been designed in our new (in-house developed) sail design software programme.

INNOVATION & DEVELOPMENT

In order to achieve our vision of allowing any enthusiastic foiler to reach his or her full potential when out on the water, we are constantly developing, testing, tuning and refining to take each of our Race set-ups to the next level! APACHE-F will be under continuous development and innovation every time we do a new production build.

APACHE FOIL SET-UP

APACHE-F is available in 4 sizes at the moment (5.2, 6.2, 7.2 and 8.5) for a wide wind range, optimised for excellent foil action with the acceleration and a top speed exceeding that of a full-blooded race sail. High performance Monofilm in the window provides crystal clear vision and a crisp gust response. The relatively high foil tension of the APACHE-F is teamed up with the carbon/composite battens and 4 cambers producing draft stability levels that should really be experienced to be believed!

SUPERIOR DRIVE & TOP SPEED

Added lean seam shaping in the upper foil for super low drag and generous seam shaping in the lower foil for superior drive. The improved panel lay-out and extra shaping with a more powerful lower foil provide the drive and acceleration while the slippery upper profile minimises drag, delivering limitless top end speed in the APACHE-F series.

LIGHT & SOFT ERGONOMIC FEATURES

The sail has a light and soft feel. However, the reduced overall weight of the sail, thanks to the use of high tech materials in the upper luff sleeve, does not sacrifice the incredible stability whilst keeping the emphasis on enhancing acceleration and top speed. Reducing the sail’s overall weight and assisting control by reducing the swing weight were achieved by adding hi-tech 2mil tri-axial laminate in the leech and mast sleeve for a soft ergonomic feel in performance.

LOOK & FEEL FOR A STABLE FLIGHT

The APACHE-F has a noticeably more narrow top as compared to our regular Race range, looking quite tall. The higher aspect ratio in this sail has the potential to generate higher speed flow of air with less turbulence. Also the profile in APACHE-F is less deep than in the regular race sails and the pressure centre in the sail is situated higher for a stable flight. The wide luff sleeve with moderate luff locks the draft, increases stability and improves on the aerodynamic features in the sail. Clean panels with minimal seams further improve the aerodynamics. The foot of this dedicated foil sail had been noticeably extended to close the gap at the bottom.

RDM VS SDM

The smallest size comes standard with RDM cambers, but is SDM compatible. The larger sizes are supplied with SDM cams, but are RDM compatible. RDM masts will give the sail a softer, less direct feeling. SDM and RDM camber replacement sets are available separately.

SPECIFICATIONS

SIZELUFFBOOMBATTENSMASTTOPRRP
5.2 4281707400/21Fixed€ 799,=
6.24701887460/25Fixed€ 839,=
7.2504 2057490/29Fixed€ 879,=
8.55482207520/31Fixed€ 899,=
  • Recommended mast: TRIBAL CONVEX SDM or RDM 100%

APACHEF_4
APACHEF_1


Tekengebied_2


APACHEF_2


TECHNICAL DETAILS

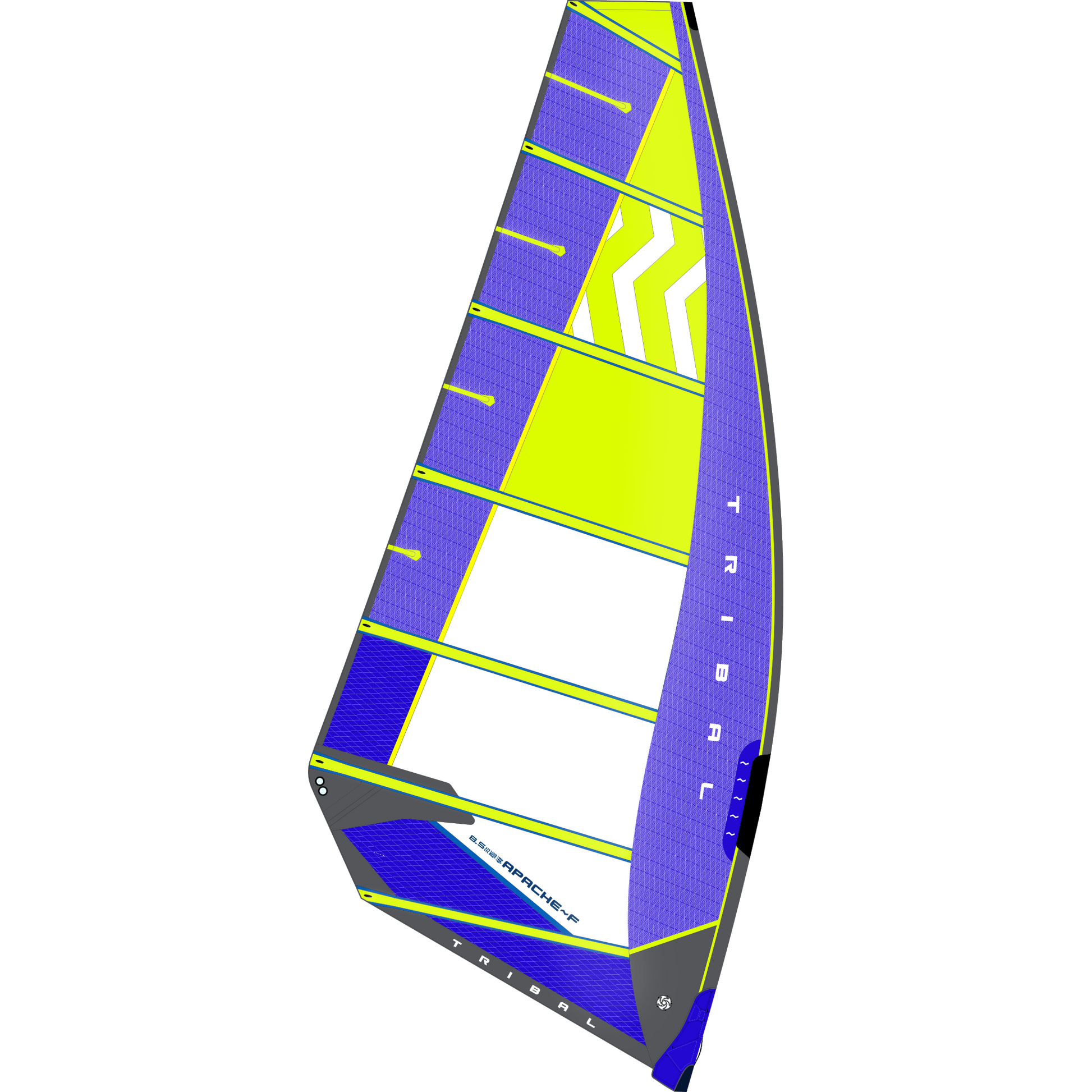

APACHEF_WEB

47/52 SDM CAMBER SET-UP

For ease of rigging with SDM masts 3 x 52 SDM roller Cambers below and 1 x 47 Camber above to lock the draft position; for RDM masts we have replacement Camber sets availaible

TWIN CLEW RINGS

To increase the usable wind range

7-BATTEN SET-UP

For high performance and great maneuverability

BOOM HEIGHT INDICATORS

For ease of reference

TRIPLE ROLLER PULLEY

For easy rigging and downhaul

INCORPORATED ROPE STASH POCKET

For easy storage of your downhaul rope end

THERMO MOULDED MASTPAD

For mast foot protection and increased durability of the sail

ARAMID PATCHES

Protecting the top of the sail and increasing durability

INCREASED LUFF CURVE

Providing superior foil stability

VARIABLE WEIGHT MONOFILM PANELS

Providing crystal clear vision and crisp gust response

WIDE LUFF SLEEVE

Locking draft and improving aero

CARBON TUBE BATTENS

Providing amazing foil stability

LEAN SEAM SHAPING FOR SUPER LOW DRAG AND SUPERIOR DRIVE

Lean seam shaping in the upper foil for super low drag and generous seam shaping the lower foil for superior drive

LIGHTWEIGHT TRI-AXIAL X-PLY

Reducing swing weight

PVC EXTRUSION

Protecting the foot from wear

NEW EXTRA LIGHT LUFF SLEEVE MATERIAL

Lightweight, durable and easy to roll

APACHE-F is our vision of a dedicated race foil sail, created to offer high performance, speed and stability!
peter2

Peter Weitenberg

designer

RANGE OF USE

DOWN THE LINE WAVE

100%

ONSHORE WAVE

90%

FREESTYLE

90%

BUMP & JUMP

60%

FREERIDE

40%

QUESTIONS? GET IN CONTACT

FAQ

Can I use other mast brands in my TRIBAL sail?

Yes, this is possible, but to ensure 100% performance we recommend the TRIBAL masts that the sails have been designed for. Go for constant curve masts with a little flex in the top and avoid hard top masts.

There are two eyelets in my sail; which one should I use?

In general, for all our sails the bottom eyelet will give you a little more control and you will be able to sail in higher wind or more demanding choppy conditions. Using the lower eyelet allows the sail to open up and breathe a little more. Taller persons might find the top eyelet better and smaller persons might like the bottom eyelet better. In the end it all comes down to personal preference.

Are the images of the items correct?

The images are a good representation of the products. Colours of images may deviate slightly from the items delivered. No rights can be derived from this.
